Spring mechanism

Self-retracting spring mechanisms, smartroll™ and Clever Spring®, used in place of the traditional bead mechanism, enable the smooth and quiet operation of roller shades of varying fabric widths and heights without having to pull the blind manually.

With one pull you can quickly and comfortably control the window shade height, which eliminates the need to use bead cords, saves time and increases the safety of the users (especially children).

Spring mechanisms are the latest solution guaranteeing safe and comfortable use according to the requirements of the EU directive and PN-EN 13120+A1_2014-04E safety standard.

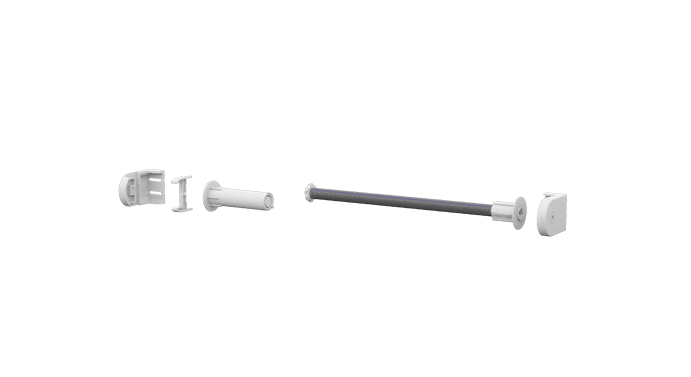

smartroll 32-1

The largest mechanism in the product family has been adapted to large roller shades, up to 2 m wide and 3 m high. The robust structure guarantees the smooth retraction of even heavy textiles with a weight of up to 2.6 kg.

  • maximum load: 2.6 kg
  • tube diameter: 32 mm
  • easy setting of start/end position
  • retraction speed adjustment
  • smooth and quiet automatic retraction

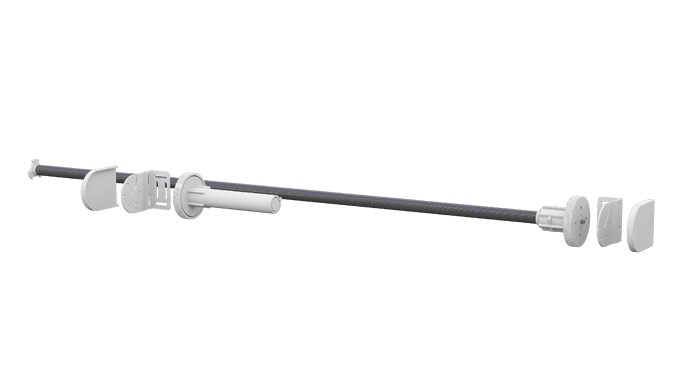

smartroll 24-1
smartroll 24-1

The mechanism has been adapted to the most common roller shades with a 24 mm tube. The compact size is ideal for short shades mounted on the wall or in the window recesses.

  • maximum load: 1.5 kg
  • tube diameter: 24 mm
  • easy setting of start/end position
  • retraction speed adjustment
  • smooth and quiet automatic retraction
smartroll 32-1

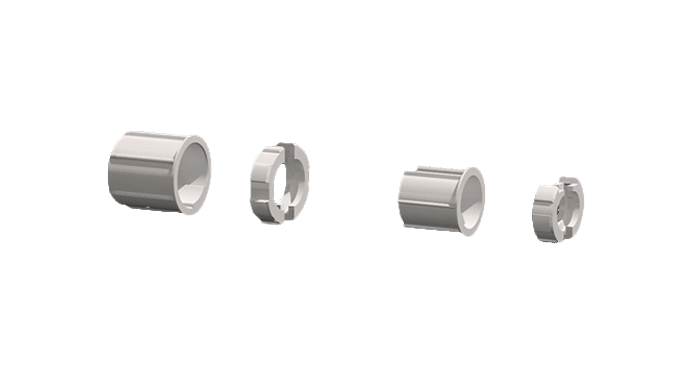

Adaptors

A wide palette of adapters enables the use of the mechanism with 32 mm and 38 mm tubes and in non-standard technical solutions.

  • adapters for 32 mm or 38 mm tubes
  • wide range of applications
  • suitable for a wide range of tubes
Adaptors

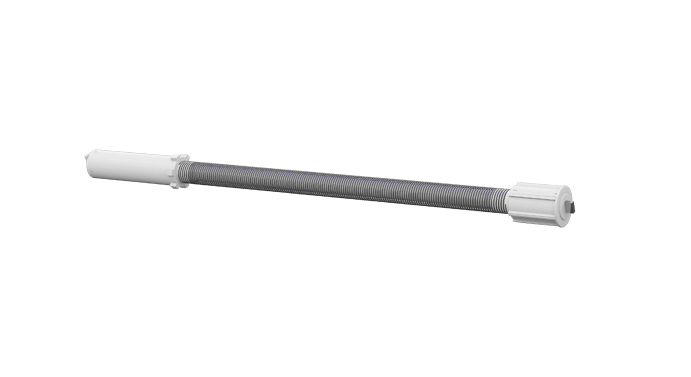

Clever Spring

The CLEVER SPRING system offers a simple installation and provides you with a convenient and practical manner to cover and decorate your windows. The system is available in mini-roller shades and classic roller shades.

  • tube diameter: 24 mm
  • easy setting of start/end position
  • smooth and quiet automatic retraction
Clever Spring

Do you want to know more about products with a spring mechanism?



Visit www.smartroll.com

Information on Clever Spring at www.prakto.eu

Download the specification
